Data sheet Huawei-SUN2000-15KTL-M2

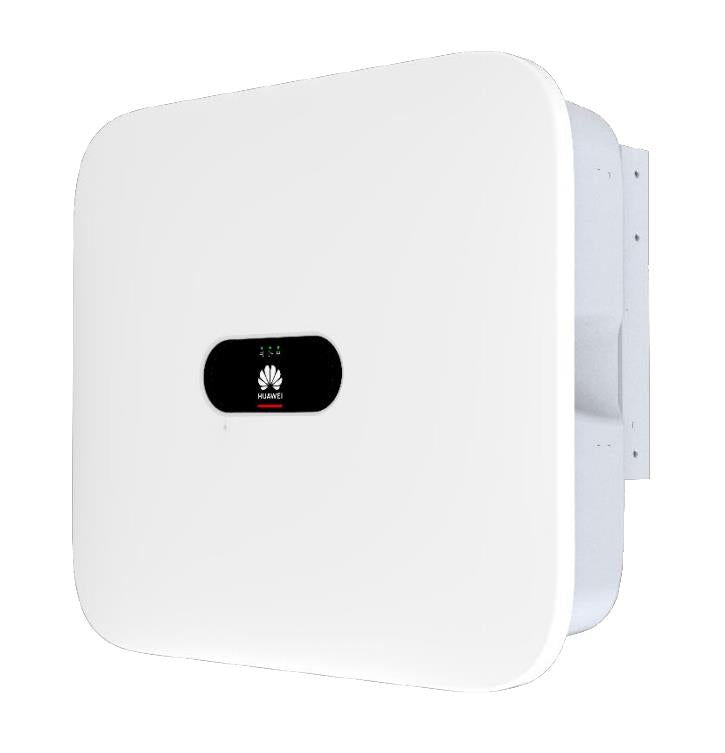

Huawei-SUN2000-15KTL-M2- 15KW

Huawei inverters are really popular as they deliver in terms of performance, price and compatibility. The SUN2000 inverters are clearly one of the best inverters on the market right now. Huawei Technologies Co. was already started in 1987 and manufactures electronics in a variety of areas, within the solar cell industry they manufacture batteries and inverters for solar cells. Huawei is the largest supplier of inverters globally and supplies to over 170 countries.

Huawei-SUN2000-15KTL-M2 is made for installation in homes with 3-phase connection. The Huawei-SUN2000 has been developed with safety in focus with, for example, AI-driven active arc protection, so it protects the inverter against arcs and is integrated into the inverter and can, in combination with optimizers from Huawei, show the exact location of the arc. Both AC and DC surge protection Class II is integrated into the Sun2000 model inverters. Huawei-SUN2000-15KTL-M2 has 2 MPP trackers with intelligent control and fault diagnosis and it is possible to connect up to 4 strings.

The Huawei-SUN2000-15KTL-M2 can be combined with the SUN2000-450W-P optimizer to get an optimized solar system but also for better monitoring via Huawei's Fusion solar app. By connecting the inverter to fusion solar, you can measure and see how much the plant produces.
Note that a wifi module is not included in this inverter, but it must be purchased separately for wifi connection. You can find it here.

Supplier guarantee: 10 years

Battery Compatible/ Hybrid: No
Max Power : 15000VA for 15, 17000VA for 17 and 20000 VA 20.
Number of phases : Three phases
Number of MPPT: 2 pcs
MPP volts min: 480.0 Volts
MPP volts max: 850.0 Volts

Number of inputs per MPPT: 2+2 up to 4 strings
DC connection: Terminal H2
Size in mm : L: 525 mm W: 470 mm H: 262 mm

Weight : 25 kg
