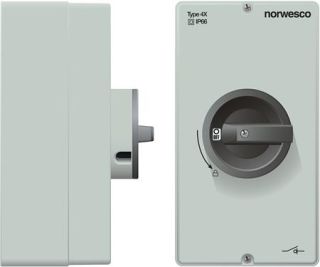

DC Safety switch 1500V 1 string
DC load disconnector for solar cell installations. The switch is intended to be installed before the inverter. Knob with clear position indication that can be locked in the off position. Cable entry takes place through one of the four knockouts found on the housing above the respective underside, maximum screw connection M25.
Dimensions (wxhxd) 98x180x107
| Version as main switch | Yes |
| Design as a service/repair switch | Yes |
| Version as a safety switch | No |
| Version as emergency stop installation | No |
| Version with reversed switch | No |
| Number of switches | 4 |
| Nominal operating voltage | 0 — 1500 V |
| Nominal continuous current Iu | 16 A |
| Number of poles | 4 |
| Number of opening auxiliary contacts | 0 |
| Number of closing auxiliary contacts | 0 |
| Number of switching auxiliary contacts | 0 |
| Motor operation selectable | No |
| Integrated motor drive | No |
| Voltage trigger selectable | No |
| Device construction method | Complete device in enclosure |
| Suitable for floor mounting | No |
| Suitable for four-hole front mounting | No |
| Suitable for central front mounting | No |
| Suitable for installation in distributions | No |
| Suitable for intermediate assembly | No |
| Color of control element | Black |
| Type of control element | Knob/Knob |
| Can be barred/locked | Yes |
| Main circuit connection method | Screw connection |
| Protection class (IP), front | IP44 |
| REACH | No |
